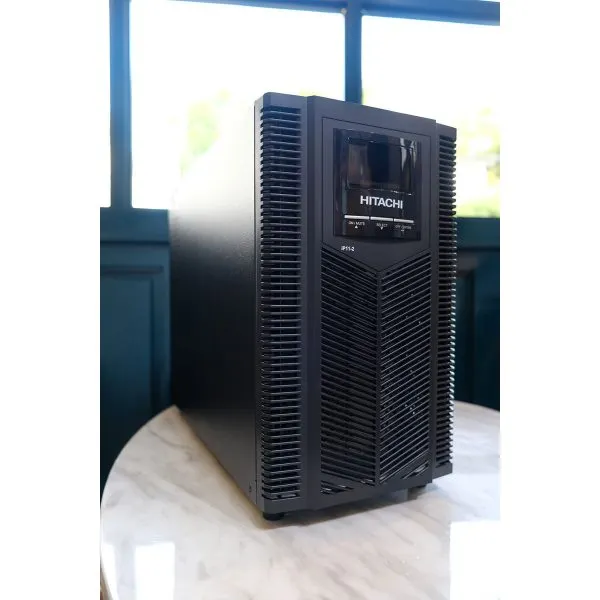

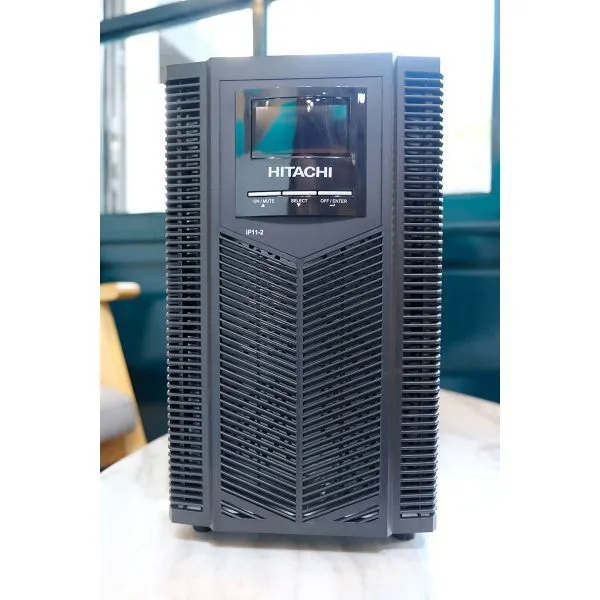

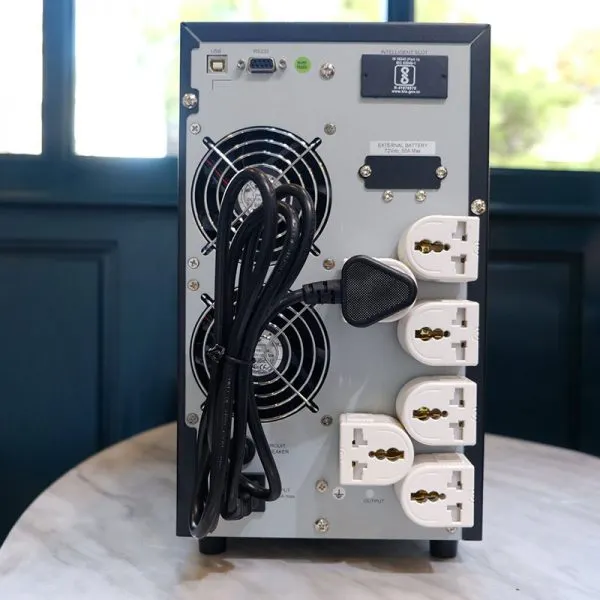

UPS Hitachi IP11-2 2KVA capacity

Overview
UPS Hitachi IP11-2 (2 kVA) is a single-phase True Online UPS designed to provide continuous, stable, and clean AC power for critical equipment. Utilizing Double Conversion technology and digital signal processor (DSP) control, the UPS IP11-2 ensures complete elimination of power issues such as voltage sags, noise, or frequency fluctuations. With high efficiency, superior reliability, and flexible operation, the product is an ideal choice for data centers, network systems, medical equipment, and industrial automation. The product is officially distributed by Alena Energy – authorized by Hitachi Hi-Rel Power Electronics in Vietnam.

Key Features

• True Online Double Conversion technology for clean, stable, and continuous power.

• DSP microprocessor enhances reliability and performance.

• Pure Sinewave output, suitable for sensitive equipment.

• Zero Transfer Time.

• Wide input voltage range (140–280 VAC), generator compatible.

• Smart monitoring support via RS-232/USB and optional SNMP.

• Smart battery management, fast charging capability (4A/6A customizable).

• High efficiency (90% in AC mode).

• Compact design, easy to install and maintain.

• Cold Start function – boots up without mains power.

Basic Technical Specifications

• Model: IP11-2

• Capacity: 2000 VA / 1600 W

• Nominal Input Voltage: 200–240 VAC

• Input Voltage Range: 140–280 VAC (100% load)

• Frequency: 40–70 Hz

• Power Factor: 0.99 @ 100% load

• Output Voltage: 200–240 VAC ±1%

• Output Frequency: 50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz

• Efficiency: 90% (AC mode), 88% (Inverter mode)

• Output Waveform: Pure Sinewave

• Battery: SMFB 12V, 6 or 8 units (60 minutes backup time, expandable)

• Max Charging Current: 4A / 6A (customizable)

• Charging Voltage: 72VDC or 96VDC ±1%

• Dimensions (L×W×H): 419 × 190 × 318 mm

• Weight: 13 kg

• Noise Level: <50 dBA @ 1m

• Operating Humidity: 20–90% RH (0–40°C, non-condensing)

• Interface: RS-232 / USB, optional SNMP support

Practical Applications
UPS Hitachi IP11-2 is widely used in:

• Data centers, server rooms, telecommunications network systems

• Production lines and industrial automation systems

• Medical equipment, laboratories, control-monitoring systems

• Smart buildings, high-end electronic devices, security cameras

The UPS IP11-2 is a comprehensive protection solution, ensuring stable and safe operation for all critical electrical systems.
