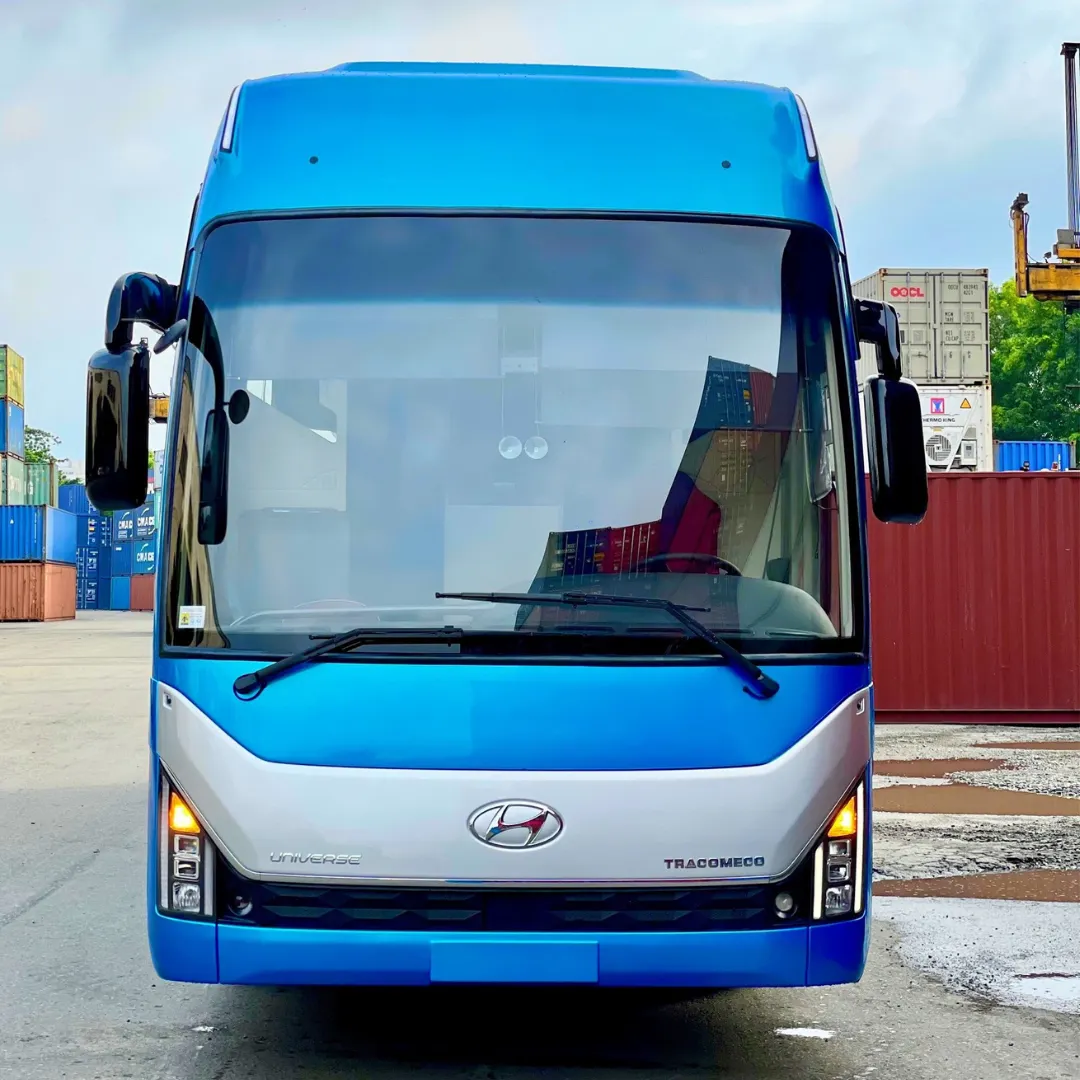

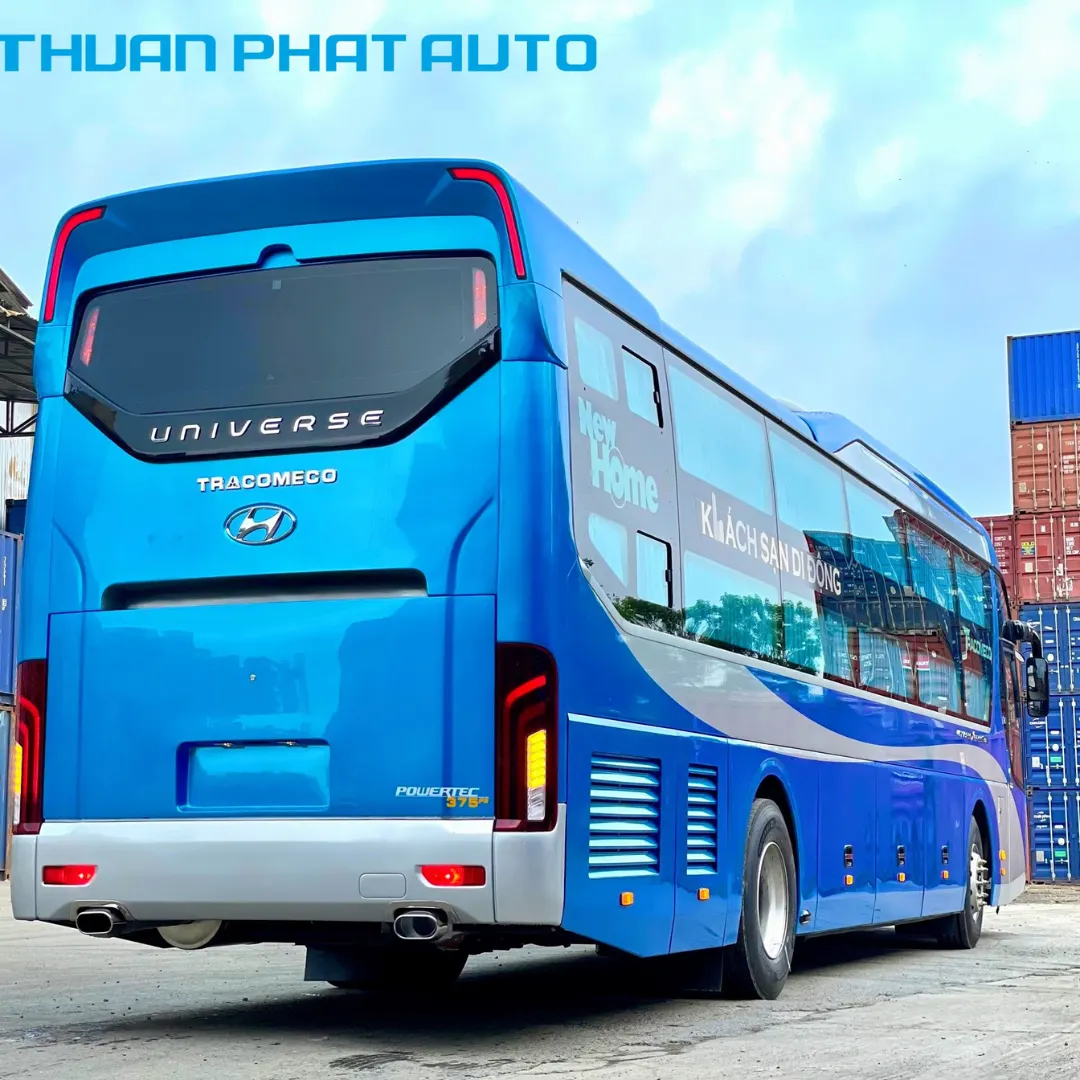

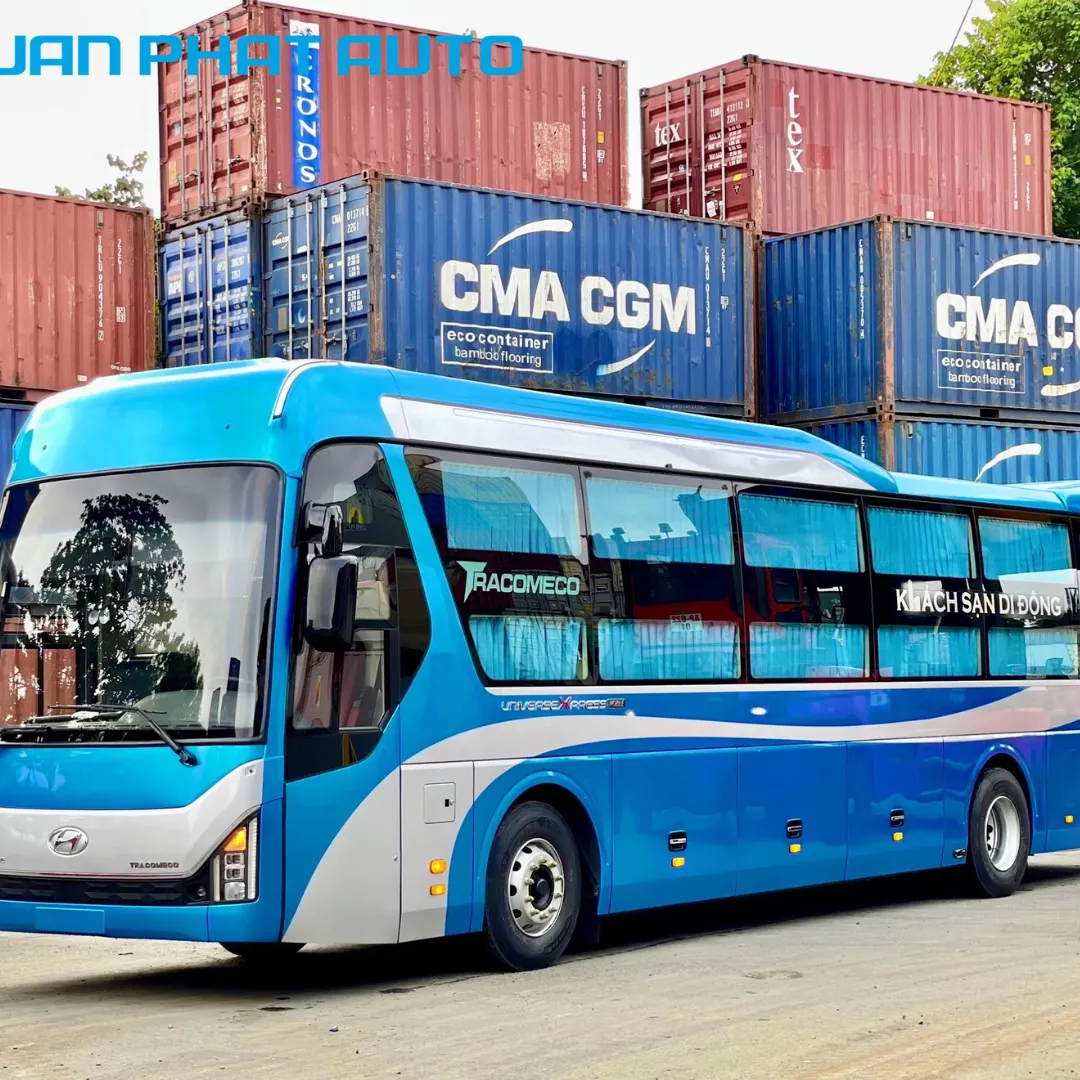

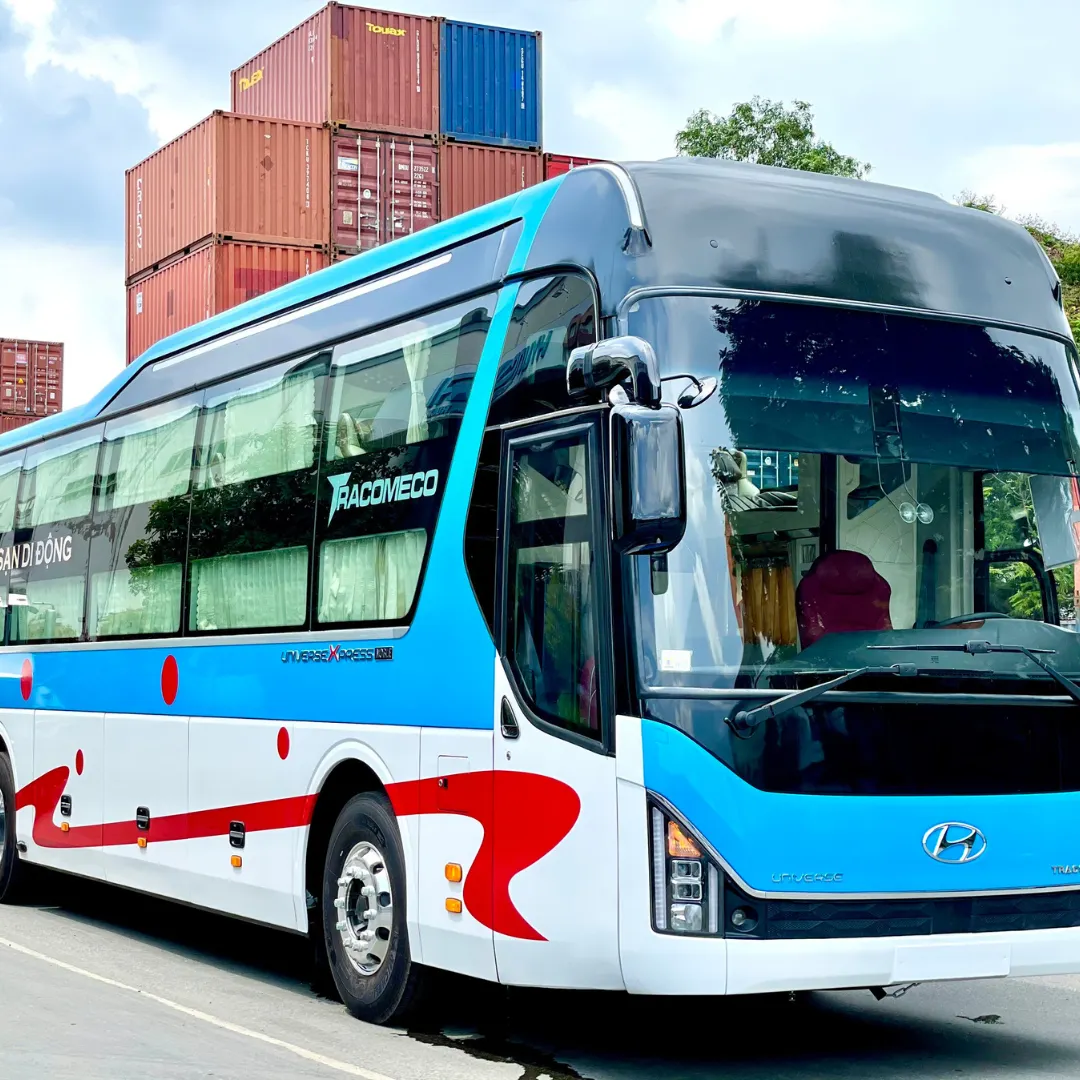

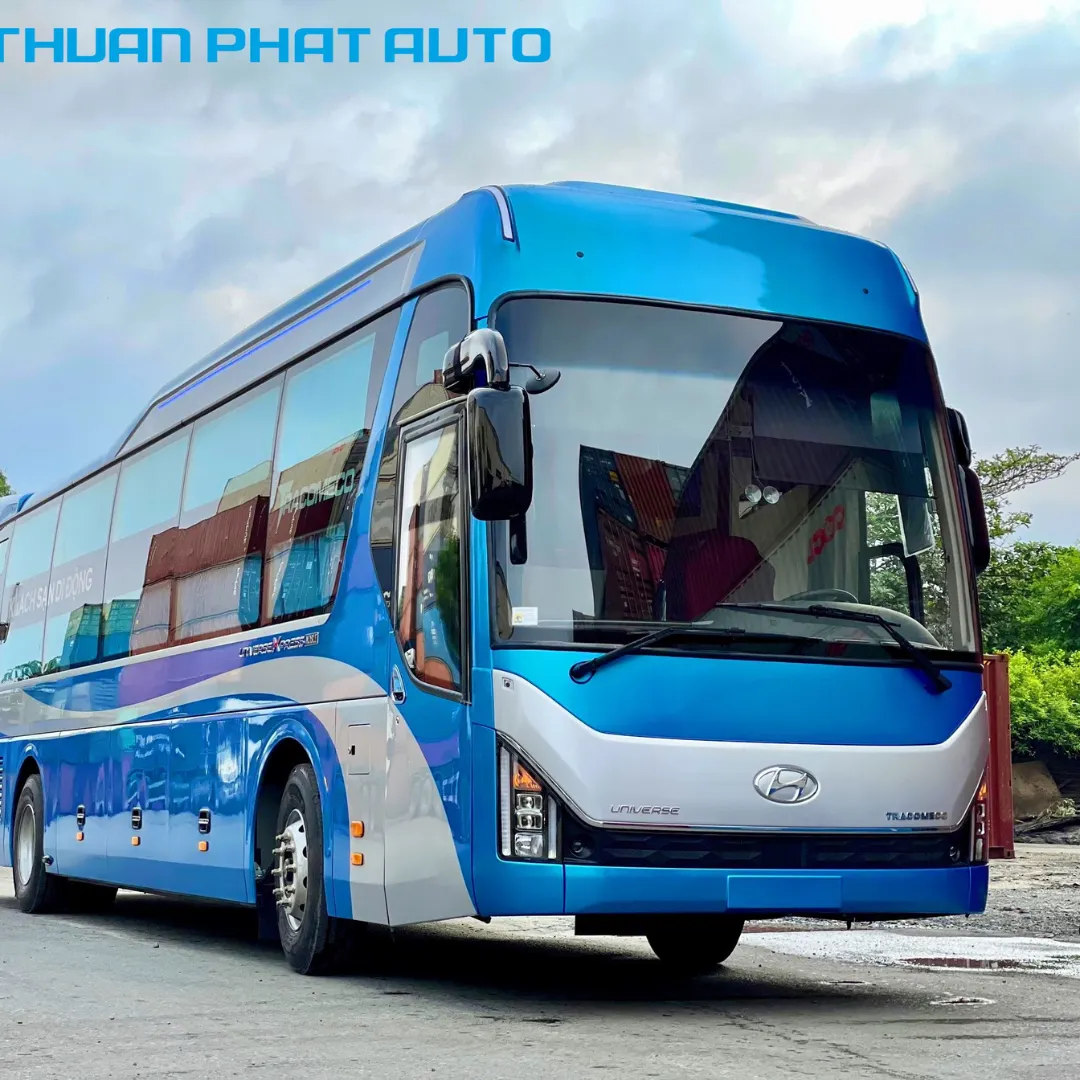

Tracomeco Universe/KIA Dcar KSDD G36W

Tracomeco Limousine 2021.

--Various design options with Universe Noble / Universe EX / Kia Granbird

-Based on the powerful and fuel-efficient Weichai 375 WP10 engine chassis.

-6 air suspension bags 945 for absolute smoothness.

-The body shell uses imported shaped steel with CO, CQ certification

-Many new improvements in both quality and finish.

+ With 34 Rooms + 2 Seats

+ ABS plastic interior material cast as a single piece for durability, smoothness and health assurance. (Old model uses composite assembly)

+ Bed handles are reinforced with iron bones for absolute firmness.

+ The bed adjustment buttons are designed delicately, creating an accent and ease of use

+ Eye-catching, luxurious colors create a cozy atmosphere for a perfect trip

TECHNICAL SPECIFICATIONS TABLE - MAIN SPECIFICATIONS TRACOMECO UNIVERSE DCAR KSDD G34W MODEL 2021

ITEM UNIVERSE DCAR KSDD G34W

Year of manufacture 2021

I. Engine / Engine Model WP10H375E40

Engine power / Max. Power (PS/rpm) 375/1900

Maximum torque / Max. Torque (N.m/rpm) 1800/1100 ~ 1400

Engine capacity / Displacement (cc) 9511

Emission standard / Emission level EURO IV

Number of cylinders / Number of Cylinder 6 in-line cylinders

Piston bore x stroke / Bore x Stroke (mm) 116 x 150

Wheel track / Wheel Tread . Front/Rear (mm) 2080/1880

Ground clearance / Min.Ground Clearance (mm) 185

Maximum speed / Max. Speed (Km/h) 121

Gradeability / Max. Gradeability (%) 43%

II. Gearbox, Clutch

6-speed gearbox: 6 forward gears - 1 reverse gear FAST - 6DS180T

Engine cooling fan Centrifugal type, electrically controlled

Dry friction disc clutch, hydraulic power assisted by compressed air VALEO (KOREA)

ABS + Electromagnetic brakes WABCO (GERMANY) - TERCA

III. Dimensions CHINA

Wheelbase (mm) 6150

Overall dimensions (mm)

Length 12200

Width 2500

Height 3640

IV. Chassis CHINA

Wheel formula 4 x 2R

Tire size Michelin Tubeless - 295/80R22.5

Rim size 8.25xR22.5

Fuel tank (Liters) 400

Number of seats 34P+1+1V

Interior and exterior

Windshield: Safety glass Type 1 sheet

Rear window, side windows: Safety glass

Rearview mirror Universe Noble design

Headlights, taillights, side lamps Universe Noble design KOREA

Air conditioning system (Kcal/h) KB KOREA - 36,000

Suspension system: dependent, air, hydraulic shock absorber, stabilizer bar Koman - Contitech (KOREA)

Axle system Fangsheng-Dymos (China-HQ)

Dashboard display (Digital Cluster) Hyundai Universe type

Wiring system + ECU European export production

Various oil and gas pipes WABCO (GERMANY) - CHINA

Standard in-vehicle interior According to TRACOMECO sample vehicle

Body Made of shaped steel specialized in automobile manufacturing according to international standards imported from Korea with CO, CQ. This is different from all other manufacturers.
