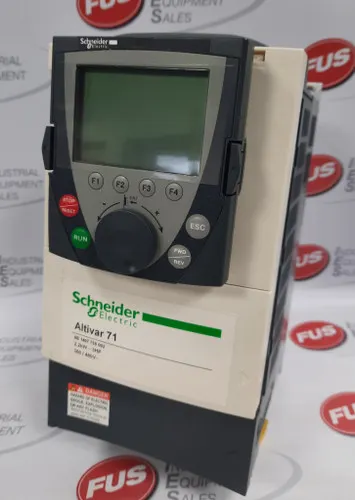

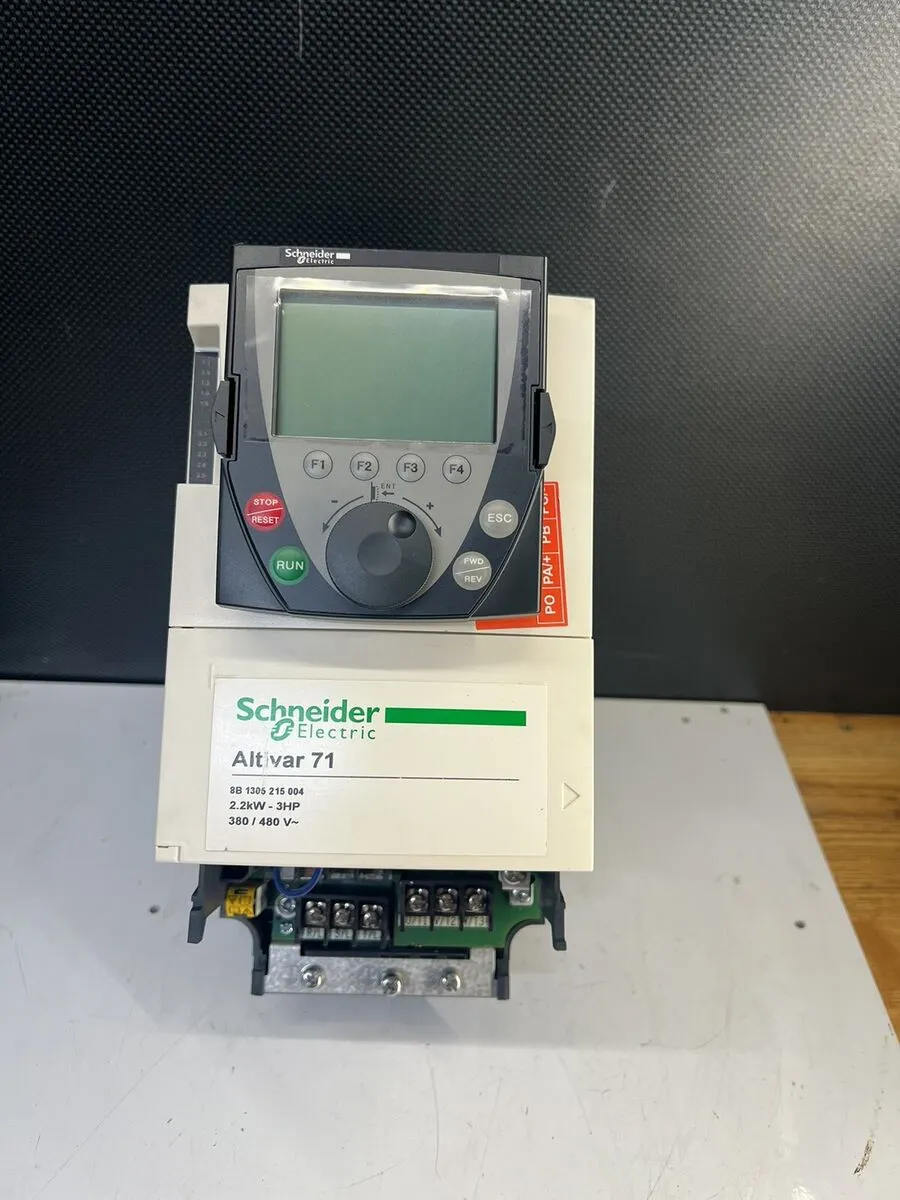

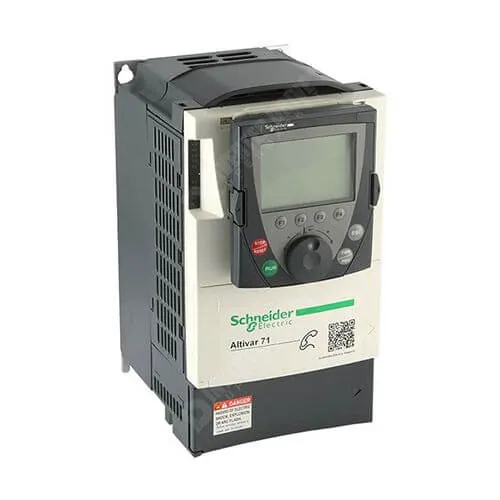

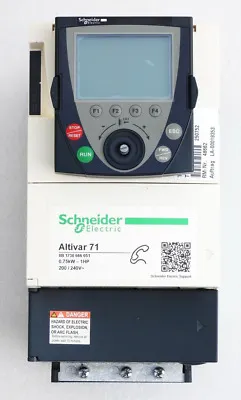

SCHNEIDER ATV71HU55M3 5.5KW 3-Phase 220V Frequency Inverter

1. 1. Overview of Schneider ATV71HU55M3 Frequency Inverter:

• Product Code: ATV71HU55M3

• Brand: Schneider Electric

• Power: 5.5 kW (7.5 HP)

• Input Voltage: 3-phase 220V (-15% to +10%)

• Output Voltage: 3-phase 0-220V

• Input Frequency: 50/60 Hz

• Output Frequency: 0.5-500 Hz (adjustable)

• Control Type: Closed-loop/open-loop vector control, V/F control

• Application: Speed control of 3-phase motors in various industrial applications.

2. Functions of Schneider ATV71HU55M3 Frequency Inverter:

• Motor Speed Control:

  • Changes the voltage frequency supplied to the motor to adjust the motor's rotational speed, thereby controlling the speed of the driven equipment.

  • Provides precise and smooth speed control.

• Energy Saving:

  • Helps the motor operate at the optimal speed for each specific application, avoiding energy waste.

  • Reduces starting current, reducing energy loss during motor starting and stopping.

• Motor Protection:

  • Protects the motor from overload, overcurrent, overvoltage, undervoltage, and short circuit faults.

  • Extends motor lifespan.

• Improved Operating Efficiency:

  • Helps equipment operate stably and accurately, improving production efficiency.

  • Reduces vibration and noise during operation.

• Automation Process:

  • Easy integration into automated control systems (PLC, DCS) to create a complete automated control system.

  • Allows remote control via industrial communication protocols.

• Versatile Applications:

  • Widely used in various industries such as:

    • Manufacturing (machinery, conveyors, pumps, fans, air compressors)

    • Construction (cranes, hoists)

    • HVAC (ventilation, air conditioning systems)

    • Wastewater treatment

    • Energy (wind turbines, solar pumps)

    • And many other industries.

3. How to Use Schneider ATV71HU55M3 Frequency Inverter:

• Installation:

  • Install the inverter in a dry, cool place, away from direct sunlight, dust, and moisture.

  • Ensure sufficient space around the inverter for heat dissipation.

  • Mount the inverter on a flat, stable surface.

• Electrical Connections:

  • Connect the 3-phase 220V power supply to the L1, L2, L3 terminals of the inverter.

  • Connect the 3-phase motor to the U, V, W terminals of the inverter.

  • Connect the ground wire to the ground terminal of the inverter.

  • Carefully check all connections before energizing.

• Parameter Setting:

  • Use the built-in keypad and display on the inverter or dedicated software to set basic parameters such as voltage, frequency, current, power, and motor type.

  • Set control parameters such as control mode, starting frequency, stopping frequency, and acceleration/deceleration time.

  • Set protection modes to ensure the safety of the motor and inverter.

• Operation:

  • Turn on the inverter power.

  • Use the buttons on the keypad or control signals to control the motor speed.

  • Observe the parameters on the inverter display to monitor the operation of the inverter and motor.

• Maintenance:

  • Periodically check electrical connections, cooling fan, and other components of the inverter.

  • Clean the inverter to ensure good heat dissipation.

  • Replace damaged components.



4. Notes When Using Schneider ATV71HU55M3 Frequency Inverter:

• Choose the right inverter: Choose an inverter with a power rating appropriate for the motor's power rating.

• Follow the instructions: Carefully read the manufacturer's instructions before installation, connection, and setting.

• Electrical safety: Ensure electrical safety during installation, operation, and maintenance.

• Accurate setting: Accurately set the inverter parameters to ensure stable and efficient operation.

• Regular maintenance: Perform regular maintenance to extend the lifespan of the inverter and motor.

• Consult an expert: If you encounter difficulties during use, consult with technical experts.
