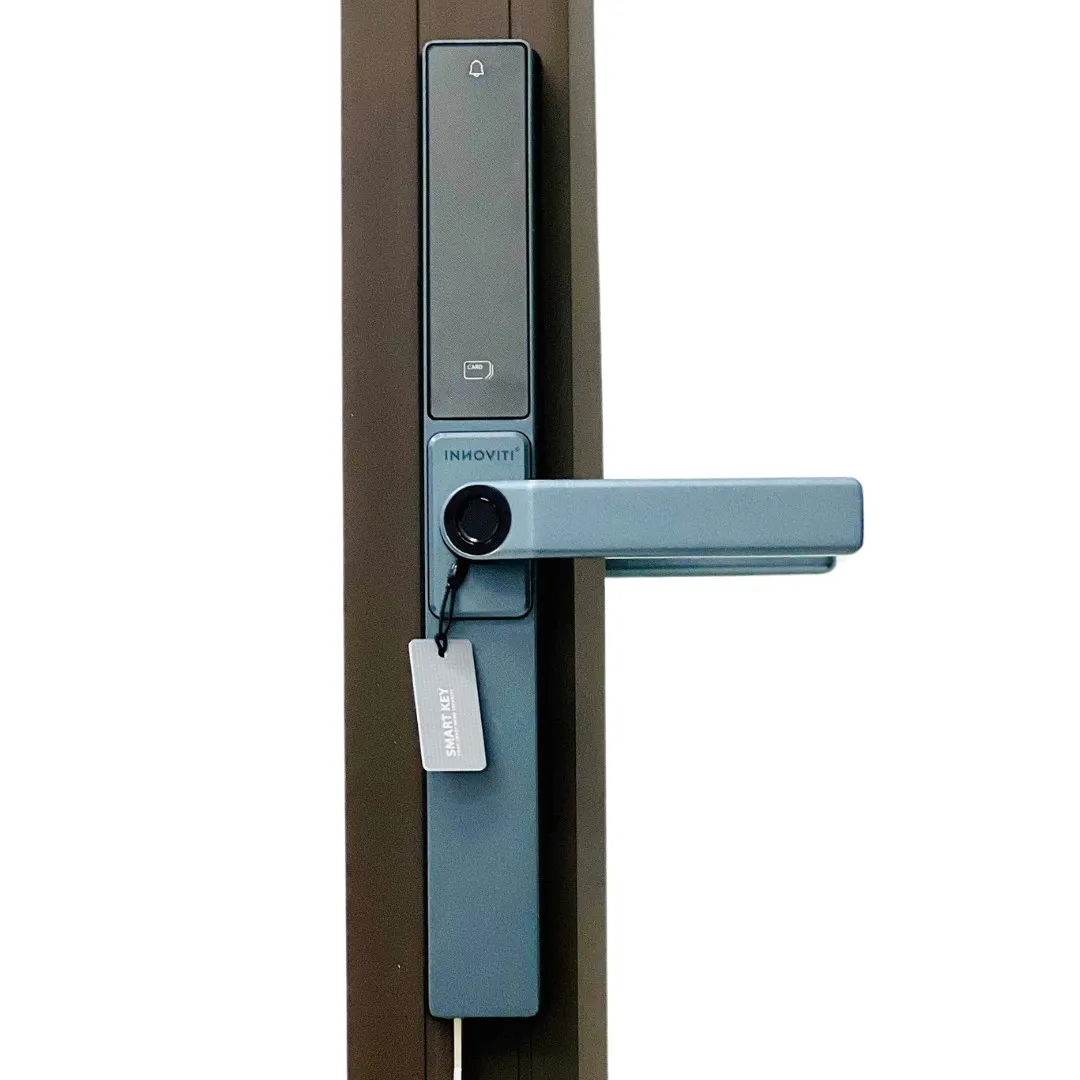

INNOVITI 28327

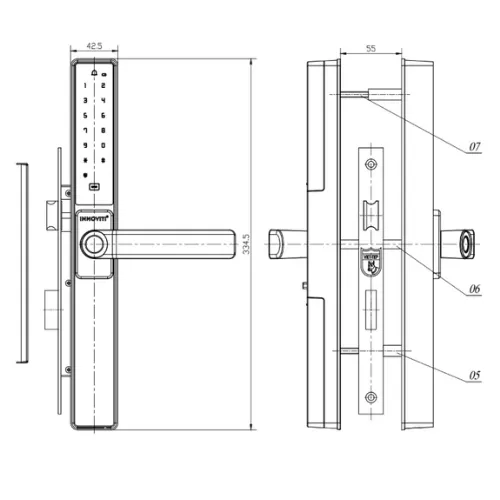

1. Lock Structure:

• The handle is designed to be sturdy and robust yet highly flexible with a quick reverse mechanism and a handle driven by ball bearings inside the lock body.

• The fingerprint module is designed in the handle to optimize the unlocking operation.

• Stainless steel lock box, durable, beautiful, solid structure, smooth operation.

• The handle cover is made of ADC12 material. The capacitive keypad uses IML technology to prevent scratches, dust, and fingerprints on the touch screen. The icons on the touch screen are printed on the underside of the protective film, ensuring that the icons never fade or blur.

• The lock uses a computer-milled key, with a non-repetitive key rate >15000 times, ensuring safety when used.

1. Application Scope:

• Office buildings, apartments, high-end apartments, agencies, banks, hospitals...

1. Lock Features:

• Easily set lock features via the energy-saving capacitive keypad, combined with Vietnamese or English voice guidance.

• Admin-User-Guest access control. Set 1 Admin password and up to 10 Admin cards for management setup.

• Lock operation features suitable for various usage needs:

- Auto-lock: The lock has an automatic locking function with a latch (draft lock) when the door is properly closed. Safer with the main lock function when the handle is moved upwards. This feature is suitable when the lock is installed on interior doors, apartment doors, security doors...

- Always Open: When this feature is activated, anyone can unlock by pulling the handle down. This feature is activated by the Admin, suitable when the lock is installed on office doors, common walkways, meeting rooms, auditoriums...

- Deadbolt: By the lever on the inner handle assembly, with color indication, integrated on the inner handle assembly. When the deadbolt is engaged, the user will not be able to unlock from the outside. At this point, the lock can only be opened with a mechanical key, or using the Admin function to cancel the deadbolt and unlock. This feature is applied when privacy is needed.

• Many auxiliary features to enhance user experience:

-Enhanced security with dual authentication mode;

-Hibernate mode for 1 minute after 5 consecutive incorrect authentications;

-Doorbell integrated on the lock body;

-Silent mode: Turns off the audio guidance when unlocking, avoiding disturbance;

-Fire alarm: When the indoor temperature is approximately 750C±30C;

-Low battery warning;

-Equipped with a battery tray containing 04 x 1.5V AA batteries for 8-12 months of operation;

-Equipped with a USB-Type C port, providing 5V power to unlock when the battery is low.

• Unlocking methods: There are 04 + 01 + 01 different unlocking methods:

(1) Fingerprint: Register up to 100 fingerprints to unlock. The fingerprint sensor uses advanced biometric technology with a recognition speed ≤ 1 second; aesthetic and convenient to use when designed on the handle.

(2) RFID Card: Register up to 100 RFID cards to unlock. The RFID card uses a high-security chip, with a card recognition speed ≤ 1 second.

(3) Password: Register up to 4 passwords, 6-12 characters long, to unlock. Equipped with virtual password technology to prevent password exposure.

(4) Mechanical key: 2 pieces.

(5) Remote Control: Compact design, one-touch to lock/unlock remotely. To use this feature, an additional signal receiving module must be installed in the inner handle assembly.

(6) Smartphone via the “Innoviti Smart Lock” App (Optional when not using the remote control). To use this feature, an additional wifi module must be installed in the inner handle assembly.

• Remote lock management via Innoviti Smart Lock App:

-Remotely lock/unlock via the Innoviti Smart Lock app installed on your smartphone.

-Share and grant access to users and guests on the app.

-Add and delete unlock codes on the app.

-Automatically save user card and fingerprint information to the app for Admin management.

-Set lock features on the app: Lock information, battery status, volume, always open...

-Save the history of locking, unlocking, and setting lock functions on the app.
