Funiki 9000BTU Single-direction Air Conditioner

Manufacturer: Hoa Phat

Single-direction air conditioner (cooling only)

Capacity 9000 BTU

Inverter technology

Origin: Thailand/Malaysia

Area: ≤ 15m² ( < 45 m³)

Fast cooling, quiet operation

Self-diagnosis mode

Self-cleaning feature

The Funiki HIC 09TMU 2024 air conditioner is equipped with special features to ensure maximum performance while maintaining durability and a luxurious design suitable for any room space.

Warranty: 24 months.

Specifications

Model HIC 09TMU 2024 Type: Single-direction (cooling)

Refrigerant R32/360 (marked “R32/360” on specifications)

Cooling capacity (W): 2 638 W

CSPF (Seasonal Performance Factor) 5.12 – achieves 4-star efficiency rating

Voltage: 220-240 V

Current: 3.9 A

Power consumption: 790 W

Frequency: 50 Hz

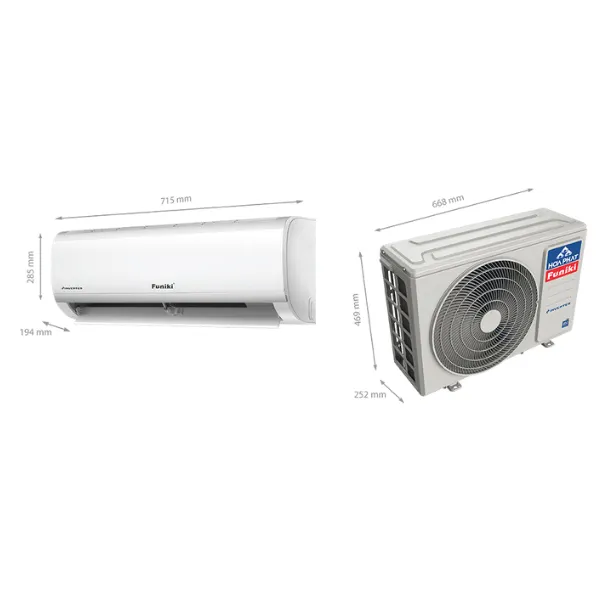

Indoor unit dimensions: 715 × 194 × 285 mm

Packaged indoor unit dimensions: 780 × 270 × 365 mm

Indoor unit weight (net/gross): 7.4 kg / 9.5 kg

Outdoor unit dimensions: 668 × 252 × 469 mm

Packaged outdoor unit dimensions: 765 × 270 × 515 mm

Outdoor unit weight (net/gross): 17 kg / 18.6 kg

Liquid pipe: φ 6.35 mm

Indoor unit airflow (High/Medium/Low): 508 / 406 / 330 m³/h

Standard refrigerant pipe length: 5 m

Maximum refrigerant pipe length: 25 m

Maximum height difference: 10 m

Remarks & Notes

• With a capacity of 9000 BTU and a recommended area of ≤ 15 m², this product is suitable for small rooms such as bedrooms, offices, or small living rooms.

• Inverter technology and a CSPF index of 5.12 indicate better power saving capabilities compared to standard models.

• R32 refrigerant – a fairly common type nowadays, offering good efficiency and being more environmentally friendly than some older refrigerants.

• During installation, the following must be adhered to: maximum gas pipe length of 25 m, maximum height difference of 10 m to ensure high performance and lifespan.

• As it is a single-direction (cooling only) model, if you need it for cold seasons or a room that requires heating, you will need to consider other options as this unit does not have a heating function.
