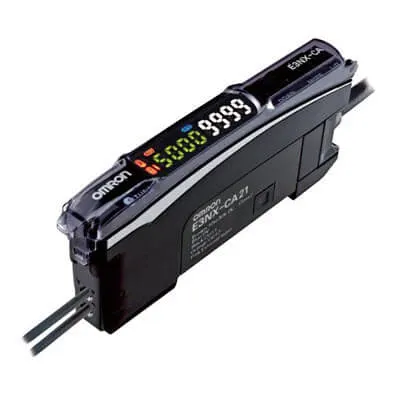

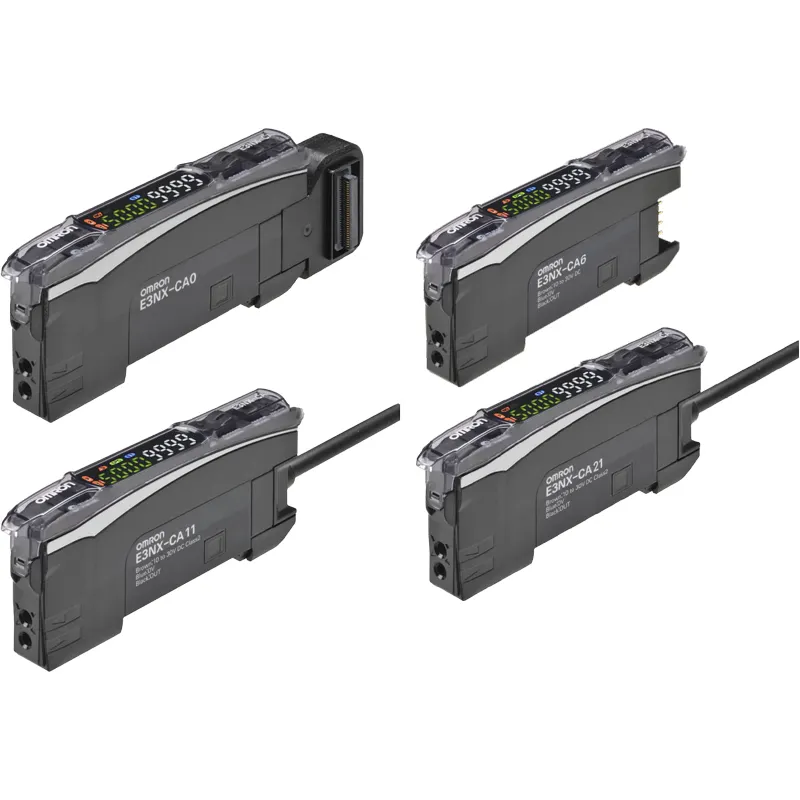

Omron E3NX-CA Series Color Fiber Optic Amplifier

Omron E3NX-FA Series Fiber Optic Sensor Amplifier is improved to detect objects up to 1.5 times compared to conventional amplifiers, with only 1/10 of the minimum distance of the minimum detected object.

Omron E3NX-FA Series Fiber Optic Sensor Amplifier can be installed very easily with the function of adjusting the brightness up to 20,000 to 40,000 times. It also has the ability to detect objects stably under saturated light conditions.

• White characters on a black background for high display efficiency.

• Improved operability: Sensitivity adjustment screw, operation mode selection.

• Easy selection of 24-240VDC, 24-240VAC power supply.

TECHNICAL SPECIFICATIONS:

• Type: Fiber optic sensor amplifier

• Power supply: 10 to 30 VDC

• Light source: Red LED (625 nm)

• Operating mode: Light-ON, Dark-ON

• Output:

  • Power supply voltage load: 30 VDC max., open collector output

  • Load current: Group from 1 to 3 amplifiers: 100 mA max., Group from 4 to 30 amplifiers: 20 mA max.

  • OFF current: 0.1 mA max.

• Indication: 7-segment LED (auxiliary digital display: green, main digital display: white)

• Response time:

  • Super high-speed level (SHS): Operation or reset 1 output: 30 µs, 2 outputs: 32 µs

  • High-speed level (HS): Operation or reset: 250 µs

  • Standard mode (Stnd): Operation or reset: 1 ms

  • Energy-saving mode (GIGA): Operation or reset: 16 ms

• Sensitivity adjustment: Intelligent adjustment (2 adjustment points, full automatic adjustment, position adjustment, maximum sensitivity adjustment, power adjustment, ratio adjustment (-99% to 99%)) or manual adjustment.

• Protection function: Automatic power control (APC), dynamic power control (DPC), time, reset, repeat setting

• Connection type: Standard cable 2m long, connector, M8 connector

• Accessories: User manual
