SolaX 15 KW Low Voltage 3-Phase Hybrid Inverter

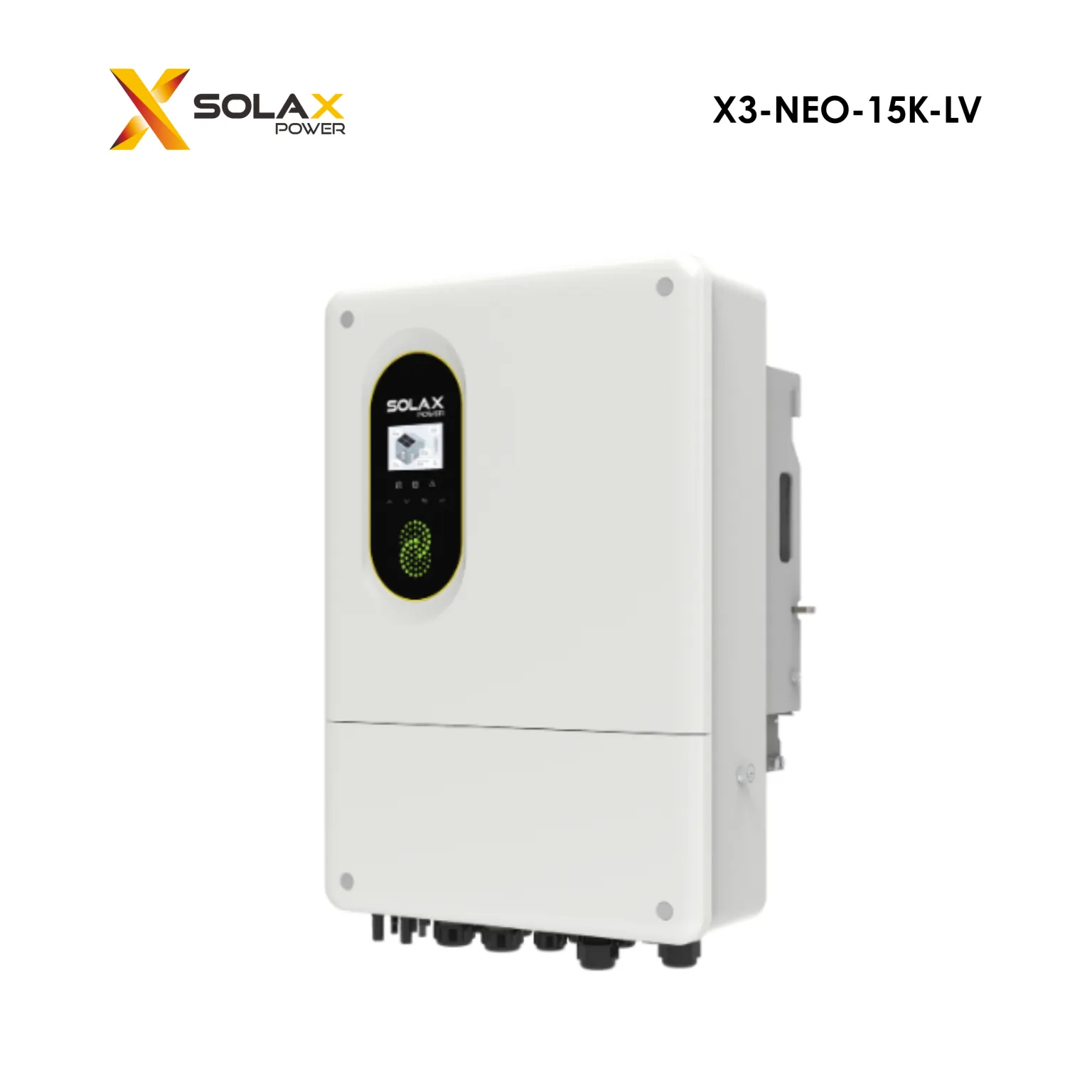

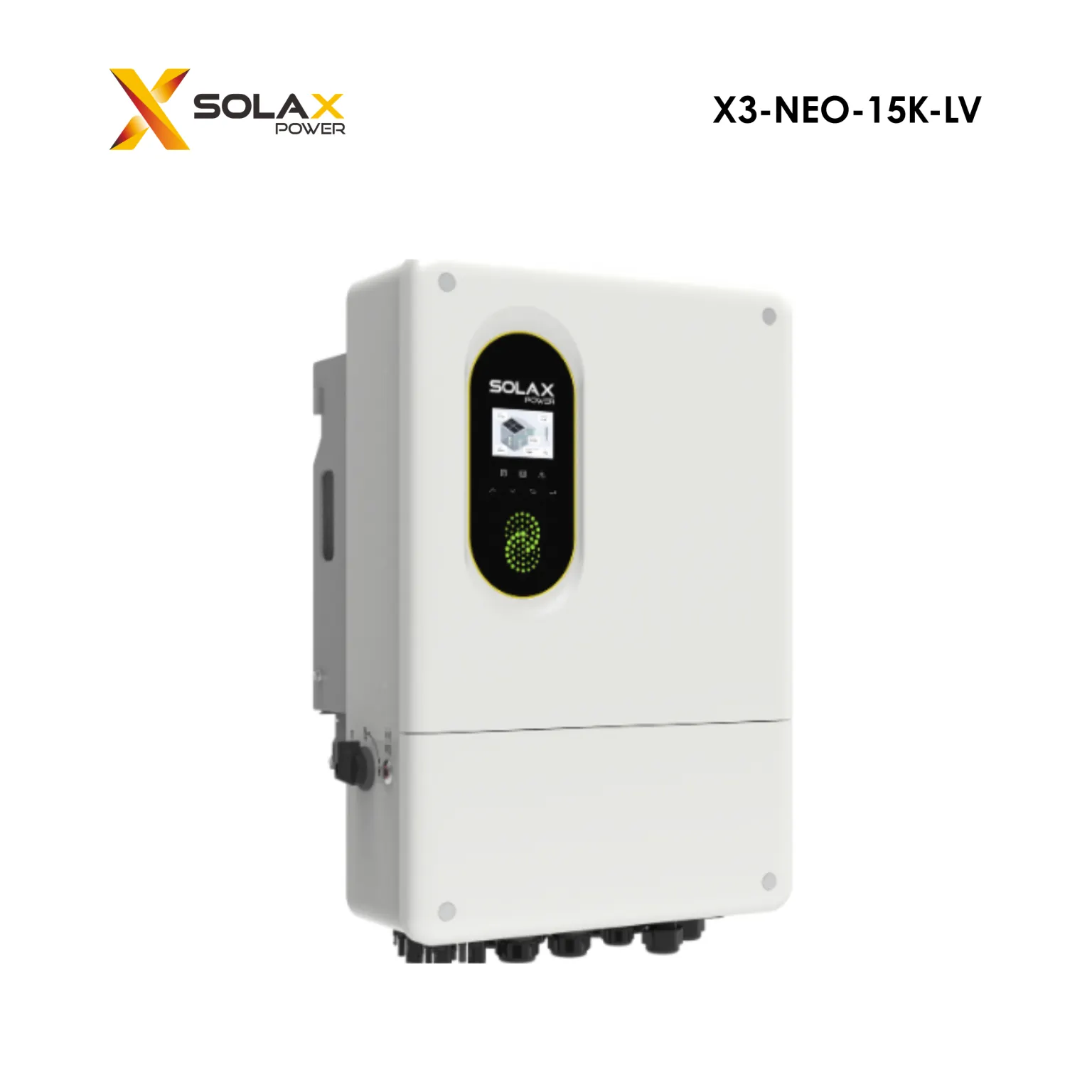

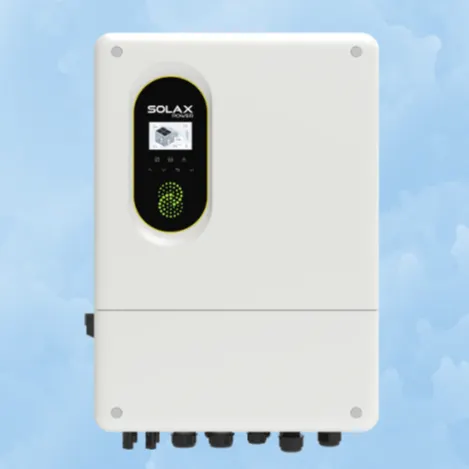

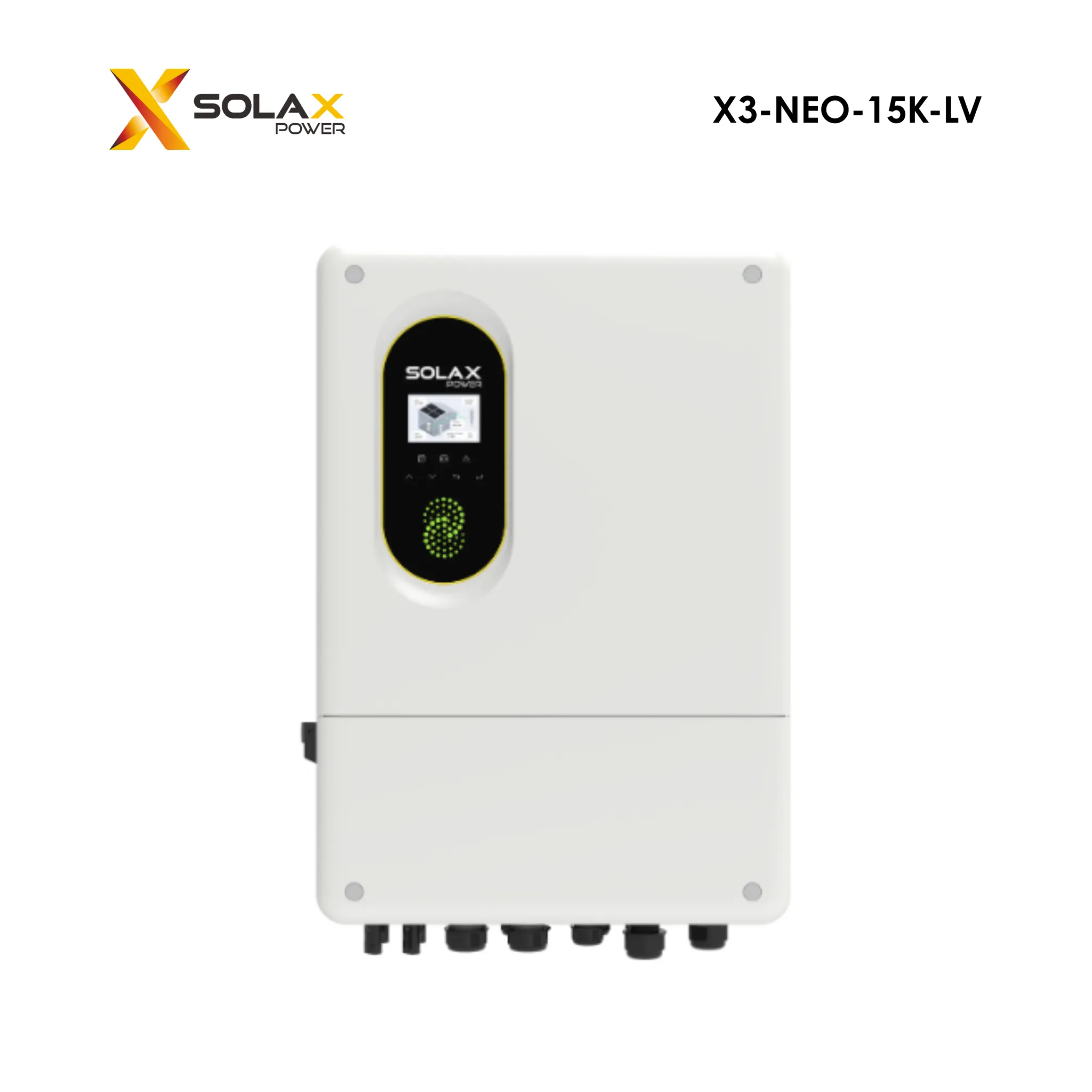

The SolaX 15KW 3-Phase Hybrid Inverter - X3-NEO-15K-LV is a new generation hybrid inverter designed to provide superior performance, power storage capabilities, and intelligent energy management. It is an ideal choice for medium and large-scale solar power systems requiring high power, stable operation, and absolute reliability.

The product supports 200% PV oversizing, a DC input current of up to 36A/MPPT, UPS-level < 3ms standard, and the ability to operate multiple devices in parallel. Integrated with advanced technology, the X3-NEO-15K-LV optimizes output and provides comprehensive system protection.

Superior Performance & Features

• Smart Management: UPS-level switching < 3ms, global MPP scan, intelligent load management.

• Flexible Adaptability: Supports multiple inverters operating in parallel, compatible with microgrids and generators.

• High Performance: 200% PV oversizing, 36A/MPPT, double EPS in 10s.

• Assured Reliability: IP65 standard, Type II SPD, optional AFCI, maximum safety.

Technical Specifications Analysis

✓ Recommended Max. PV power (30,000 Wp): Maximizes the use of solar energy.

✓ Max. input PV voltage (1000 V): Supports high-voltage battery systems.

✓ MPPT voltage range (160 ~ 950 V): Stable energy harvesting under various conditions.

✓ Rated AC power (15,000 W): Meets large load demands.

✓ Switching time (< 3 ms): UPS standard protects sensitive loads.

✓ THDi (< 3%): Ensures high output power quality.
